Salt Spray Testing and What It Is?
It is used to see the performance of metals, the protective coatings and the surface treatments. The test exposes samples to a regulated fog or mist of saline solution. This is done inside a sealed chamber for a predefined time duration. It is done for between 24 hours to more than 1000 hours. It depends on the test standard and application.
Extreme environmental conditions are replicated in it. This is done to assess a material’s resistance to rusting, pitting, blistering or discoloration. Although not accurately simulating exposure in the actual world.
Why Salt Fog Testing Matters
Corrosion is one of the most damaging factors. It affects materials and electrical components over time. It gradually and frequently deteriorates functionality, structural integrity, and beauty of products. Manufacturers benefit from salt fog testing:
- Assess product life expectancy in corrosive environments
- Qualify new materials and coatings before release
- Benchmark against industry competitors
- Meet international quality and durability standards
- Prevent costly warranty claims or safety failures
Salt spray testing is not only advised but also required for sectors such as metal finishing, automotive, maritime, and telecommunications.

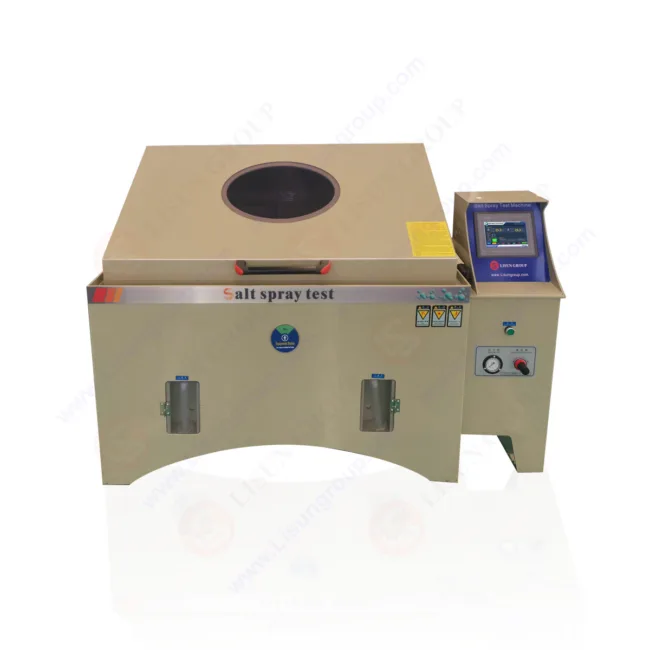

The Salt Spray Chambers from LISUN
LISUN provides a comprehensive selection of Salt Spray Chambers under the SC series. These are designed for precise, repeatable corrosion testing. Major international standards, including ISO 9227, ASTM B117, GB/T 2423.17, JIS Z 2371, and IEC 60068-2-11, are followed in the design of these chambers.
Key Features of LISUN’s Salt Fog Chambers:
- Chamber Sizes: From 60L to over 1000L, with customizable configurations
- Corrosion-Resistant Structure: Built from high-grade PVC or fiberglass for long-term resistance against chloride
- Precise Temperature Control: Automatic PID regulation of chamber and solution temperatures
- Uniform Spray Distribution: Advanced atomizers and nozzles ensure fog uniformity
- Intelligent Control System: Touchscreen or digital interfaces to program test durations, heating, fog time, and rest intervals
- Safety Systems: Overheat protection, low water alerts, and auto-shutdown features
- Transparent Lid with Heating: Prevents condensation and allows visual monitoring during testing
How the Salt Spray Test Works
The test procedure involves placing the sample inside the salt fog chamber and exposing it to a fine mist of saline solution. The key test variables include:
- Salt concentration (typically 5% sodium chloride solution)
- Test temperature (usually 35°C for NSS)
- Duration (ranging from hours to weeks)
- Orientation of the specimen
- Drip rate and collection rate of salt solution
The method uses compressed air. This air atomizes the salt solution into a fog. The fog settles on the specimens in the test chamber after being constantly sprayed there. Following testing, the samples are examined for signs of corrosion, including:
- Rust spots or streaks
- Paint blistering or peeling
- Cracks or delamination in coatings
- Metal pitting or deformation
These results are compared against specification thresholds provided by OEMs or international standards.
Types of Salt Spray Tests Performed in LISUN Chambers
1. Neutral Salt Spray Test (NSS)
- Uses neutral pH (6.5–7.2) NaCl solution
- Most common method
- Applied to metals and surface treatments like galvanization or anodizing
2. Acetic Acid Salt Spray Test (AASS)
- The solution’s pH is lowered to 3.1–3.3 by adding acid.
- Simulates harsher environments, often used for decorative coatings and organic paints
3. Copper-Accelerated Acetic Acid Salt Spray Test (CASS)
- Adds copper chloride to the AASS solution
- Used for electroplated plastics and high-end automotive components
LISUN chambers are capable of handling all three methods with the appropriate setup and software parameters.
Industries That Rely on Salt Spray Testing
LISUN’s salt fog chambers are used in a wide range of industries, including:
- Automotive: Testing metal body panels, engine parts, fasteners, and coatings
- Marine: Assessing hardware, paints, and protective coatings for boats and offshore equipment
- Electronics: Ensuring enclosures and metal contacts resist corrosion
- Construction: Evaluating aluminum cladding, steel reinforcements, and galvanized fittings
- Consumer Goods: Testing home appliance components, tools, and decorative metal surfaces
Salt spray testing provides critical data for various things. These include product development, vendor qualification, and warranty risk reduction.
LISUN vs Other Salt Spray Chamber Brands
Compared to leading names like Q-Fog (Q-Lab), Weiss Technik, or AScott, LISUN provides a powerful balance between performance, price, and global accessibility.
| Feature | LISUN Salt Fog Chamber | Premium Competitors |
|---|---|---|
| Test Types | NSS, AASS, CASS | NSS, AASS, CASS |
| Chamber Material | Corrosion-resistant PVC | Stainless or polymer |
| Temp Range | Ambient to 50–60°C | Same |
| Spray Uniformity | High (adjustable) | High |
| Interface | Touchscreen/Digital | Advanced touchscreen |
| Software Logging | Available | Included |
| Calibration | Internationally traceable | Included (often at extra cost) |
| Price | Mid-range, excellent value | Premium pricing |
| Support | 50+ countries | Limited outside Europe/US |
For companies seeking standard-compliant equipment without overpaying for features they may not use, LISUN delivers unmatched value.
Automation and Data Logging
LISUN’s chambers can be equipped with data loggers and PC software that automatically track and save testing conditions. This includes:
- Chamber temperature and humidity
- Test duration
- Fog generation cycles
- Alarms and events
- Power interruptions
These logs can be exported via USB or Ethernet for reporting and archiving purposes—critical for ISO 9001 or ISO/IEC 17025-accredited labs.
Global Support, Calibration, and Customization
LISUN supports clients worldwide with:
- On-site installation and training
- Multilingual technical support
- ISO-traceable calibration certificates
- Custom chamber sizes or features
- Accessory kits (fog collectors, pH testers, corrosion grade panels)
Whether you’re a small R&D lab or a mass production facility, LISUN’s flexible service options make salt spray testing simple to integrate.
Choosing the Right Salt Spray Chamber
To select the ideal chamber, consider:
- Sample Size and Volume: Choose a chamber that fits your largest test specimens with ample spacing.
- Test Type: NSS is sufficient for general testing; AASS and CASS require acid-resistant components.
- Cycle Duration: Some chambers support 24/7 testing with auto-fill and drainage.
- Budget: LISUN chambers offer industry-standard testing without high-end pricing.
- Compliance: Verify that your model meets ISO, ASTM, and local testing requirements.
Conclusion
Salt spray testing is one of the most effective, standardized methods. It is used for evaluating the durability of materials and coatings in corrosive circumstances. Salt fog chambers are devices that provide information on long-term dependability. Whether you’re certifying a metal alloy for use in maritime environments or confirming the longevity of car trim.
In terms of accuracy and performance, LISUN offers a whole line of salt spray chambers that are affordable, compliant, and on par with high-end competition. LISUN’s systems are designed for practical applications, catering to industries worldwide, with features including user-friendly interfaces and international calibration.
The salt corrosion test solutions from LISUN are a priceless investment. These are for any company that cares about compliance, product quality and lifecycle performance.
Frequently Asked Questions (FAQs)
Q1: How long does a salt spray test usually take?
The material, coating and necessary specifications determine the typical duration. It might vary from 24 to 1000 hours.
Q2: How do NSS, AASS, and CASS vary from one another?
For more aggressive corrosion, CASS adds both acetic acid and copper chloride, AASS adds acetic acid, while NSS employs a neutral pH salt fog.
Q3: Does LISUN offer assistance with installation and training?
Indeed. LISUN provides installation services in more than 50 countries. It provides virtual and on-site training and multilingual support.
Q4: Can you use LISUN salt spray chamber to conduct cyclic corrosion testing?
Standard versions allow for continuous exposure. But LISUN also provides chambers that can be tailored for settings with alternating or cyclic corrosion.
The Salt Spray Test is one of the most well-known techniques to assess durability. This test measures how resistant a material or coating is to corrosive damage. Salt Fog Chamber is used by manufacturers to conduct tests properly and consistently. With its cutting-edge, reasonably priced, and standards-compliant salt spray testing apparatus, LISUN stands out among the world leaders in this field. The operation of salt spray testing, its importance for product quality, and how LISUN’s solutions satisfy global testing requirements will all be covered in this article.
